LMZB(J)2-12
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting bus type current transformer, is widely
used for measuring current, electric energy and protective
relaying in the electrical system with rated frequency 50Hz or
60Hz and highest voltage for equipment 12kV. The product
has three secondary windings (one measuring winding & two
protective windings or two measuring windings &one
protective winding). Rated primary current is 1000-5000A
and rated secondary current is 5A.
Technical Data
1、Rated insulation level: 12/28/75kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
Specification
|
Type |
Rated Transformation ratio (A) |
Accuracy classes combination |
Rated output Cos∮=0.8 (VA) |
FS |
ALF |
||
|
Measuring |
Protective |
||||||
|
0.2（S） |
0.5 |
10P |
|||||
|
LMZB2-12 |
1000/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P |
15 20 |
15 20 30 |
15 20 30 40 |
5 (10) |
10 15 20 |
|
|
1200/5 |
||||||
|
1500/5 |
|||||||
|
2000/5 |
|||||||
|
3000/5 |
|||||||
|
4000/5 |
|||||||
|
5000/5 |
|||||||

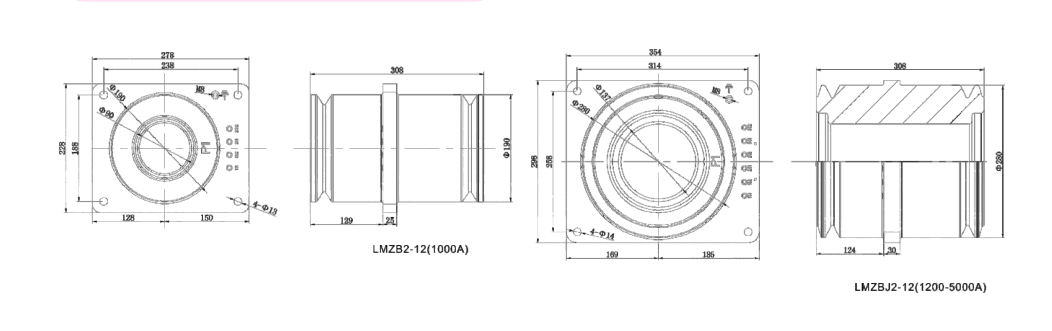

Outline
