LMZ9-7.2G
CURRENT TRANSFORMER
□ 7.2kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting busbar type current transformer, is widely
used for measuring current, electric energy and protective
relaying in the electrical system with rated frequency 50Hz or
60Hz and highest voltage for equipment 7.2kV.
The product has one secondary windings Rated primary current is
300-1000A and rated secondary current is 5A/1A
Technical Data
1、Rated insulation level: 7.2/20/60kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
IEC 61869-1&2
Specification
|
Rated transformation ratio(A) |
Accuracy classes combination |
Rated output（VA） |
||
|
Measuring |
Protective |
|||
|
0.2(S) |
0.5 |
10P10 |
||
|
300/5 |
0.2(S) 0.5 1 10P10 |
7.5 10 15 |
7.5 10 15 |
7.5 10 15 |
|
400/5 |
||||
|
500/5 |
||||
|
600/5 |
||||
|
800/5 |
||||
|
1000/5 |
||||

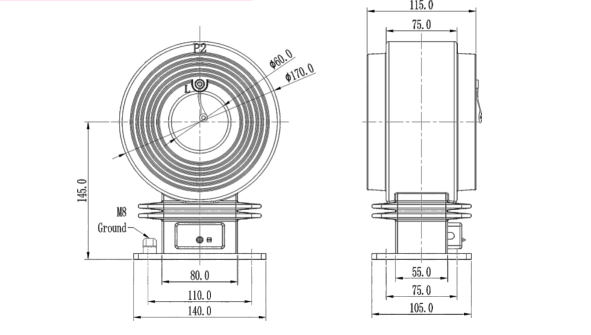

Outline
