LZZW2-17.5 outdoor support type current transformer with epoxy cast resin insulation. The product can have four secondary windings and each winding can have tap. The product has large external insulation creepage distance, withstands dirtiness and ultraviolet radiation. Be suitable for measuring current, electric energy and protective relaying in the electrical system of highest voltage for equipment 17.5kV.
Technical Data
1. Rated insulation level: 17.5/38/95 kV (IEC), 12/42/75 kV (GB)
2. Rated frequency: 50/60Hz
3. Installation site: Outdoor
4. Technical standard: IEC 61869-1:2007, IEC 61869-2:2012
Specification
|
Rated transformation ratio(A) |
Accuracy classes combination |
Rated output（VA） |
|||
|
0.2(S) |
0.2 |
0.5S |
0.5 |
||
|
5-300/5A |
0.2S、0.2、0.5S、0.5 |
5 7.5 10 |
5 7.5 10 |
5 7.5 10 15 |
5 7.5 10 15 |
|
400/5A |
|||||
|
600/5A |
|||||
|
800/5A |
|||||
|
1000/5A |
|||||
Note：Upon request we are glad to offer transformers according to other technical specs.

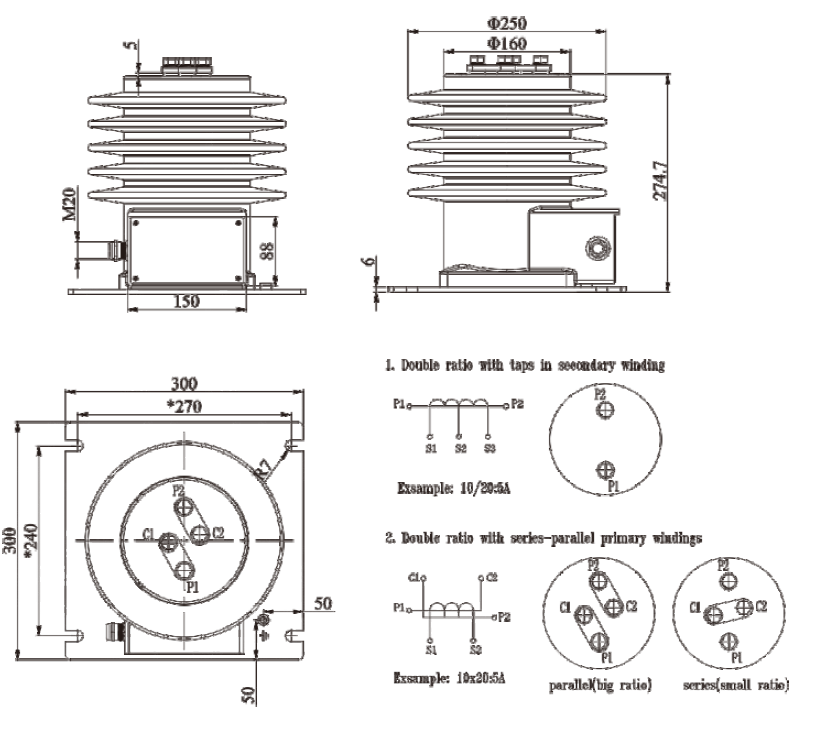

Outline Drawing
