LZZBJ9-12A1G
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product
has the feature of light weight, omni-directional
installation, withstanding nastiness and dampness. It is
widely used for measuring current, electric energy and
protective relaying in the electrical system with the rated
frequency 50Hz or 60Hz and highest voltage for equipment
12kV
Technical Data
1、Rated insulation level: 12/28/75kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
(IEC 61869-1&2)
LZZBJ9-12A1G
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses primary & secondary windings and
annular core in the epoxy resin casting body. The product
has the feature of light weight, omni-directional
installation, withstanding nastiness and dampness. It is
widely used for measuring current, electric energy and
protective relaying in the electrical system with the rated
frequency 50Hz or 60Hz and highest voltage for equipment
12kV
Technical Data
1、Rated insulation level: 12/28/75kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
(IEC 61869-1&2)
Specification
|
Rated current ratio (A) |
Accuracy classes combination |
Rated output(VA) COSФ=0.8 |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2（S） |
0.5 |
10P |
||||||
|
5-200/5 |
0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P |
10 |
15 |
15 |
5 (10) |
10 |
100I1n |
250I1n |
|
300/5 |
20 |
50 |
||||||
|
400/5 |
30 |
75 |
||||||
|
500/5 |
40 |
80 |
||||||
|
600/5 |
50 |
80 |
||||||

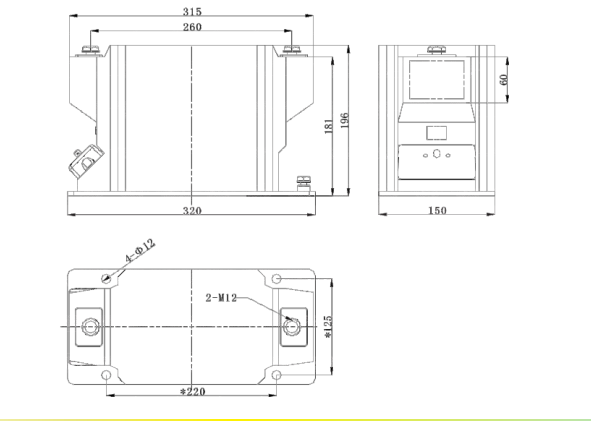

Outline
