LZZBJ9-12/150b4
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support construction,
encloses the primary & secondary windings and annular core in the
epoxy resin casting body. The product has the feature of light weight,
omni-directional installation, withstanding nastiness and dampness. It
is widely used for measuring current, electric energy and protective
relaying in the electrical system with the rated frequency 50Hz or 60Hz
and highest voltage for equipment 12kV
1、Rated insulation level: 12/28/75kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
(IEC 61869-1&2)
LZZBJ9-12/150b4
CURRENT TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support construction,
encloses the primary & secondary windings and annular core in the
epoxy resin casting body. The product has the feature of light weight,
omni-directional installation, withstanding nastiness and dampness. It
is widely used for measuring current, electric energy and protective
relaying in the electrical system with the rated frequency 50Hz or 60Hz
and highest voltage for equipment 12kV
1、Rated insulation level: 12/28/75kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1
(IEC 61869-1&2)
Specification
LZZBJ9-12/150b/4 Single Ratio
|
Rated current ratio (A) |
Accuracy classes combination |
Rated output (VA) |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2（S） |
0.5 |
10P |
||||||
|
10-200/5 |
0.2(S)/0.5/10P 0.2/0.5/10P
0.2(S)/10P/10P 0.5/10P/10P 0.2(S)/0.5/10P/10P |
10 15 |
15 |
15 |
5 (10) |
10 15 20 |
100I1n |
250I1n |
|
300/5 |
31.5 |
80 |
||||||
|
400/5 |
31.5 |
80 |
||||||
|
500/5 |
40 |
100 |
||||||
|
600/5 |
50 |
125 |
||||||
|
800/5 |
20 |
63 |
125 |
|||||
|
1000/5 |
80 |
160 |
||||||
|
1200,1250/5 |
80 |
160 |
||||||
LZZBJ9-12/150b/4 Double Ratio
|
Rated current ratio (A) |
Accuracy classes combination |
Rated output (VA) |
FS |
ALF |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||||
|
0.2（S） |
0.5 |
10P |
||||||
|
10-20/5 |
0.2(S)/0.5/10P 0.2/0.5/10P
0.2(S)/10P/10P 0.5/10P/10P |
10 15 |
15 |
15 20 |
5 (10) |
10 15 20 |
1.5 |
3.75 |
|
20-40/5 |
3 |
7.5 |
||||||
|
50-100/5 |
8 |
20 |
||||||
|
100-200/5 |
15 |
37.5 |
||||||
|
200-400/5 |
30 |
75 |
||||||
|
400-800/5 |
63 |
130 |
||||||
|
500-1000/5 |
63 |
130 |
||||||
|
600-1200/5 |
80 |
160 |
||||||

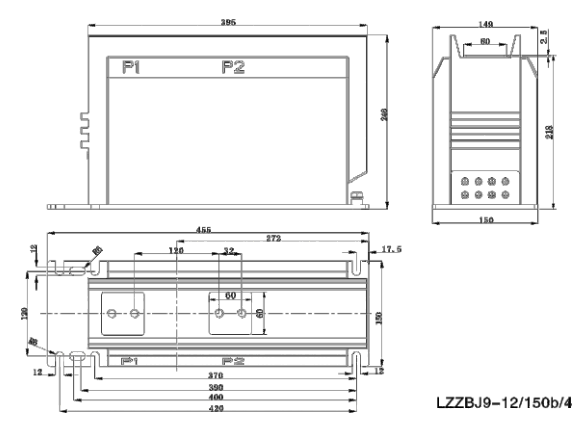

Outline
