JDZX9-36、JDZX9-36J
VOLTAGE TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and single pole insulated VT, is widely used
indoor for measuring , electric energy and protective
relaying in the isolated neutral system with the frequency 50Hz or
60Hz and highest voltage for equipment 36 kV (Up to 40.5kV),
The transformers can be produced according to the standards
IEC60044-2:2003.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated
primary
voltage (kV)
Rated secondary
voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZX9-36
JDZX9-36J
33/√3
0.11/√3/0.11/3
0.2/6P(3P)
25/150
600
36/70/170
(IEC)
0.5/6P(3P)
50/150
1/6P(3P)
120/120
0.11/√30.11/√3/0.11/3
0.2/0.2/6P(3P)
15/15/100
300/300
0.2/0.5/6P(3P)
15/30/100
0.5/0.5/6P(3P)
30/30/150

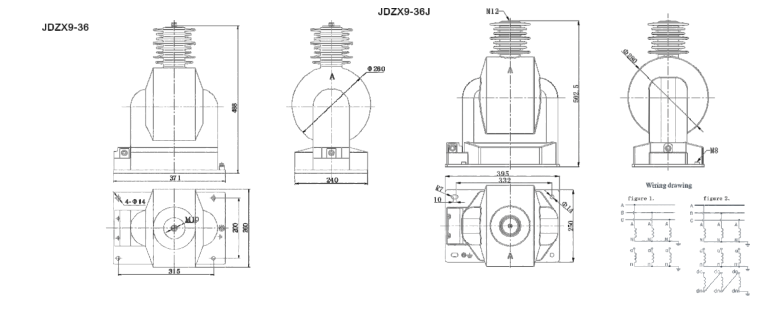

Outline
