JSZV8-12R
Three-phase Voltage Transformer
□ 12kV Indoor Three-Phase Epoxy Resin Type
Description
JSZV8-12R voltage transformer (with inbuilt fuses) , epoxy resin casting
and fully enclosed construction, is used indoor for measuring voltage,
electric energy and protective relaying in the electric system with the
frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
The product has the feature of high reliability, low magnetism of core,
large creepage distance of external insulation and maintenance free etc.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)

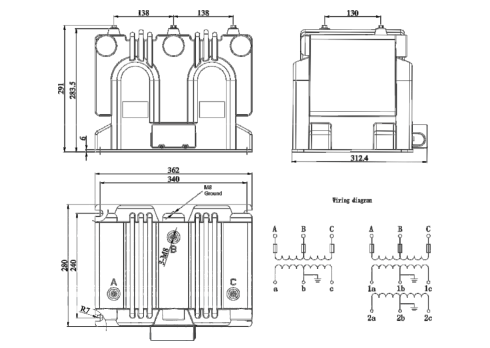

Specification
|
Type |
Rated primary Voltage （kV） |
Rated secondary Voltage （kV） |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting Output (VA) |
Rated Insulation level (kV) |
|
JSZV8-12R |
3 6 10 11 |
0.1 0.11 0.22 |
0.2 |
25 |
2×600 |
12/28/75 12/42/75 |
|
0.5 |
50 |
|||||
|
1 |
100 |
|||||
|
0.1/0.1 0.11/0.11 |
0.2/0.2 |
15/15 |
2×300/300 |
|||
|
0.2/0.5 |
15/25 |
|||||
|
0.5/6P(3P) |
30/600 |
2x600 |
