JDZX18-12RJC
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and full enclosed construction, is used indoor
switch cabinet to measure the , electric energy and protective
relaying in single phase or three phase AC circuit with the frequency
50Hz or 60Hz and highest voltage for equipment 12 kV.
The iron core adopts advanced cold-rolled silicon steel sheet. High
voltage outgoing line of primary winding was fetched out from top of the
product; outgoing line of secondary winding was fetched out from
transverse side of the product.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
Type
Rated primary
Voltage
（kV）
Rated secondary
Voltage
（kV）
Accuracy classes
combination
Rated output
(VA)
Thermal limiting
Output
(VA)
Rated
Insulation level
(kV)
JDZX18-12RJC
11/√3
0.1/√3
0.2
15
400
12/28/75
0.5
30
1
50
0.11/√3/0.11/3
0.2/6P
15/50
300
0.5/6P
30/50

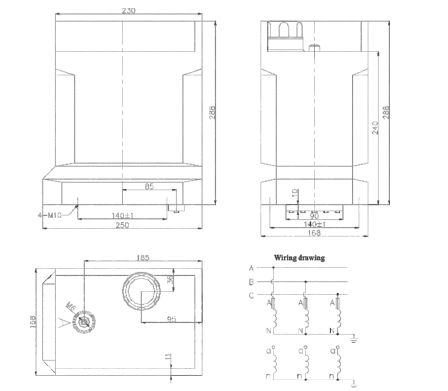

Outline
