JDZX10-12
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Type
Used indoor single phase or three phase AC circuit for
measuring electric capacity, voltage and protective relaying with
the frequency of 50Hz or 60Hz and
The product adopts epoxy resin casting full-closed structure
with low magnetism density and large creepage distance of
external insulation The product has high reliability and
maintenance free .
highest voltage for equipment
12kV.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
Specification
Type
Rated
primary
voltage (kV)
Rated secondary
voltage (kV)
Accuracy
classes combination
Rated output
(VA)
Thermal
limiting current
(VA)
Rated
insulation level(kV)
JDZX10-12
11/√3
0.11/√3
0.2
15
400
12/28/75
0.5
30
1
60
0.11/√3/0.11/3
0.2/6P
15/50
300
0.5/6P
30/50

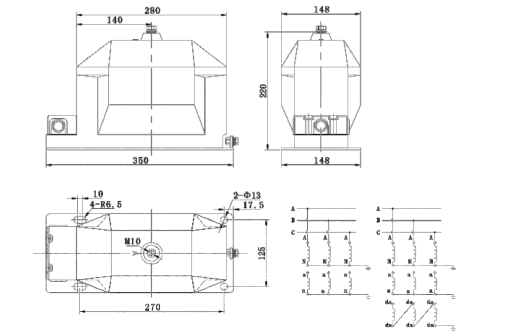

Outline
