JDZX10-12A、JDZX10-12B
VOLTAGE TRANSFORMER
□ 12kV Indoor Single-Phase Epoxy Resin Typ
Epoxy resin casting and full enclosed construction,
is used indoor switch cabinet to measure the voltage
, electric energy and protective relaying in
single phase or three phase AC with the
frequency 50Hz or 60Hz and highest voltage for
equipment 12kV.
The iron core adopts advanced cold-rolled silicon
steel sheet. High voltage outgoing line of primary
winding was fetched out from top of the product;
outgoing line of secondary winding was fetched out
from transverse side of the product
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
Specification
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZX10-12A |
11/√3 |
0.11/√3/0.11/3 |
0.2/6P(3P) |
15/50 |
300 |
12/28/75 |
|
0.5/6P(3P) |
30/50 |
|||||
|
1/6P(3P) |
60/50 |
|||||
|
JDZX10-12B |
11/√3 |
0.11/√3/0.11/3 |
0.2/6P(3P) |
25/50 |
400 |
12/28/75 |
|
0.5/6P(3P) |
50/50 |
|||||
|
1/6P(3P) |
80/50 |

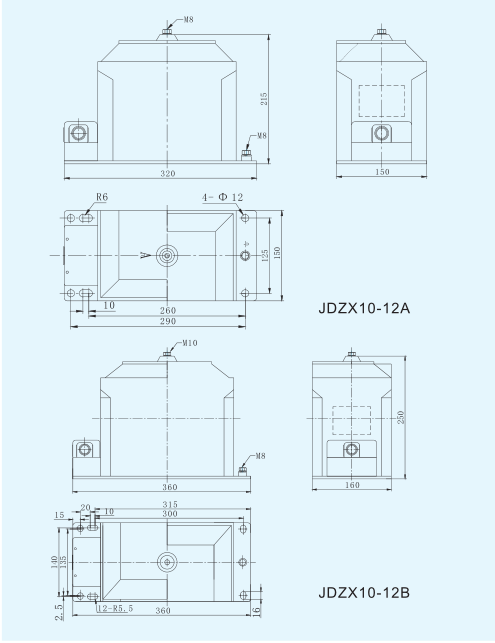

Outline
