JDZ10-12C1
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated fully enclosed
construction, is used indoor for measuring , electric energy
and protective relaying in the electric system with the frequency
50Hz or 60Hz and highest voltage for equipment 12kV.
The product has the feature of high reliability, low magnetism of
core, large creepage distance of external insulation and
maintenance free etc.
Technical Data
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
Specification
|
Type |
Rated primary voltage(kV) |
Rated secondary voltage(kV) |
Accuracy class or accuracy classes combination |
Rated output (VA) |
Thermal limiting current(VA) |
Rated insulation level |
|
JDZ10-12C1 |
11 |
0.11 |
0.2 |
15 |
400 |
12/28/75 |
|
0.5 |
50 |
|||||
|
1 |
80 |
|||||
|
0.11/0.11 |
0.2/0.2 |
10/10 |
200/200 |
|||
|
0.2/0.5 |
15/30 |
|||||
|
0.11/0.22 |
0.2/6P(3P) |
15/500 |
500 |
|||
|
0.5/6P(3P) |
30/500 |

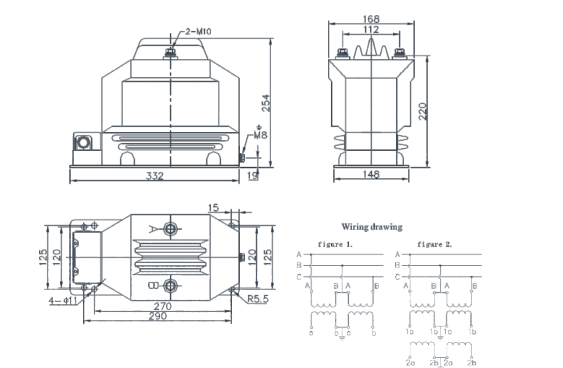

Outline
