LZZ7-36
CURRENT TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Casting resin and full-enclosed support type product. It is
used indoor for metering current and electric energy,
protective relaying in the electrical system of rated frequency
50Hz or 60Hz and highest voltage for equipment 36kV(Up to
40.5kV). The transformers can be executed according to the IEC
standards
Technical Data
1、Rated insulation level: 36/70/170kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1 & (IEC61869-1&2)
Specification
Rated primary current
(A)
Secondary
accuracy classes combination
Rated output
(VA)
Rated short-time thermal current (kA/S)
Rated dynamic current ( kA)
0.2(S)
0.5
10P
20-200/5
0.2（S）/0.2（S）
0.2(S)/0.5
0.2/(S)10P
0.5/10P
0.2S/0.5/10P
0.2/0.5/10P
10
15
15
15
20
150I1n
375I1n
300/5
31.5
80
400/5
31.5
80
500/5
40
100
600/5
50
125
800/5
63
125
1000/5
80
160

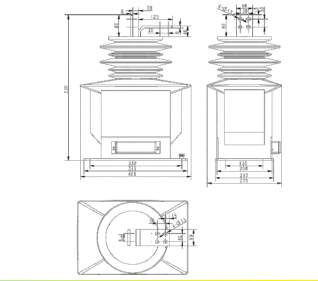

Outline
.
